It can handle up to 8 ESC/motors and makes the wiring of your multirotor system simple and tidy.

Inbuilt, dual BEC/voltage regulators allow the use of your main battery for powering both the flight controller (5V) and FPV systems (10~20V)

Suitable for multirotors up to 800mm rotor span and a total working current no higher than 120A max.

Features:

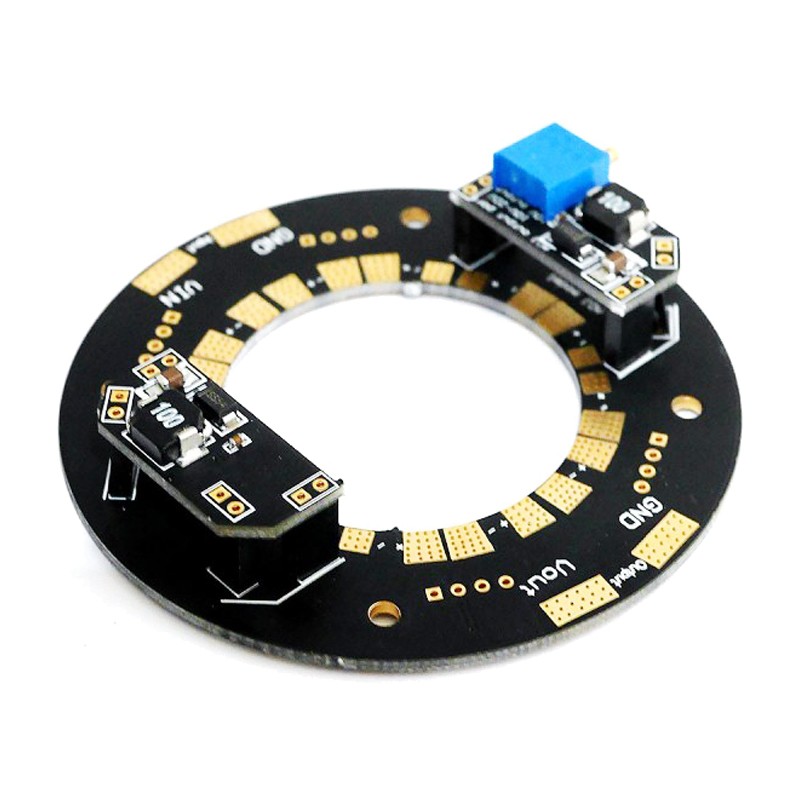

• Dual, integrated UBEC and FPV voltage regulators: 1 x 5V fixed, 1 x 10~20V adjustable
• Drives up to 8 ESC/motor combinations (octacopter)

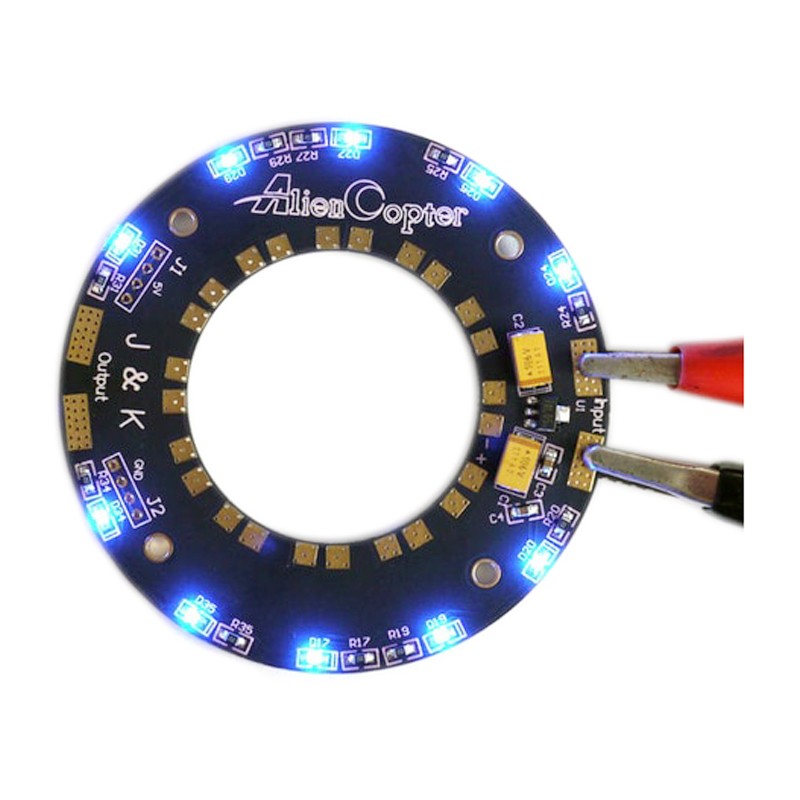

• Bright LED lights
• Offers a simple wiring solution

Specifications:
With dual BEC output

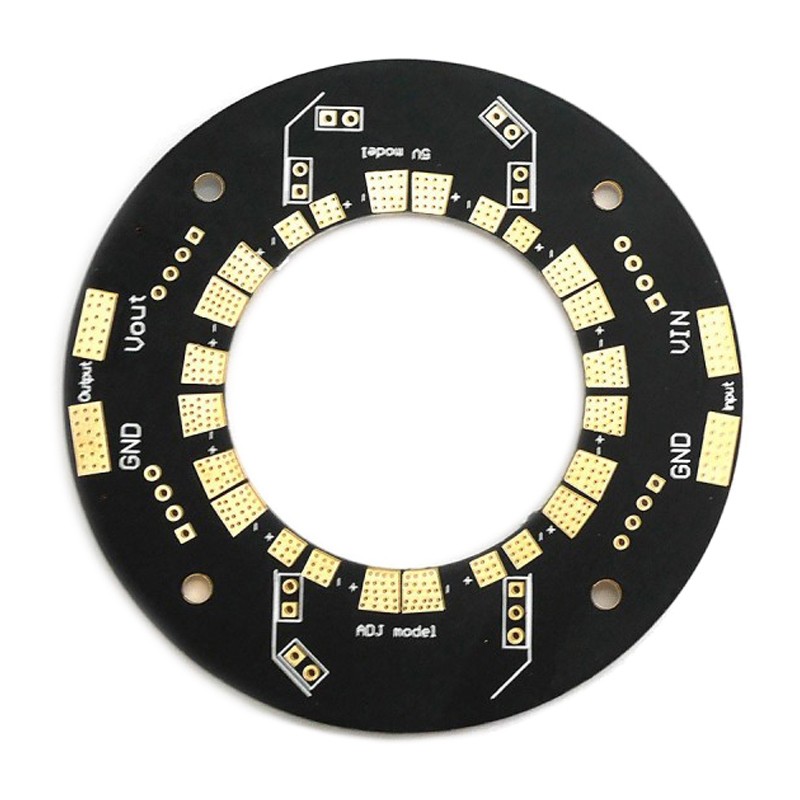

Round ESC distribution board
With 12 ESC solder pan, 2 main power input
Power solder pan: 2set
ESC solder pan: 12set
Max.current: 100A

N.W.: 18g
Size: Outer diameter 77mm, inner diameter 40mm
Max.voltage support: 6S

BEC output:
5V 3A
10-20V 3A adjustable

Package included:

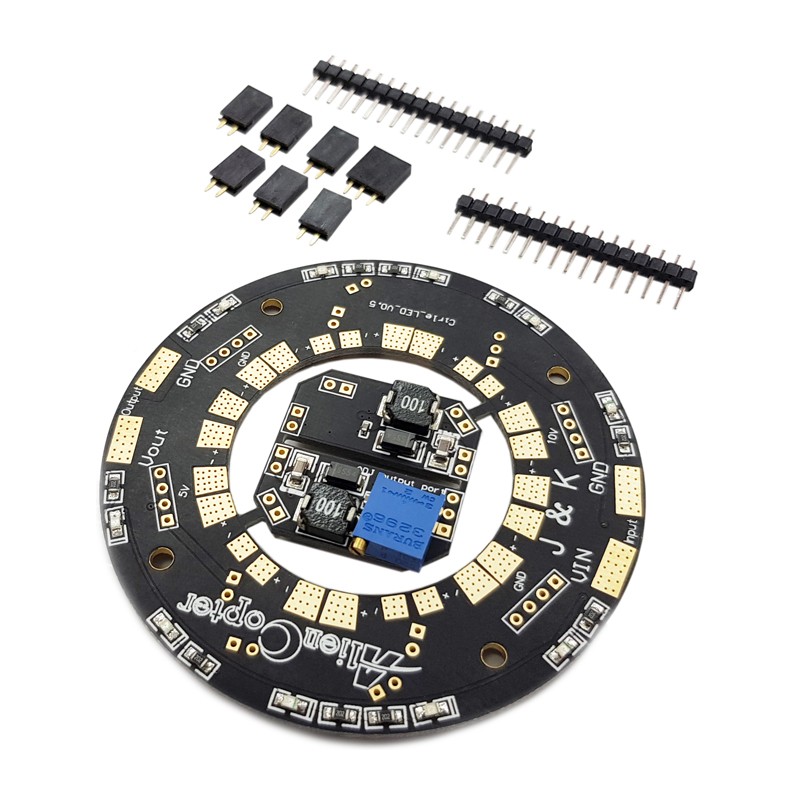

1 x J&K Dual BEC ESC Power Distribution Board Power Connection Plate.
