FatShark Attitude V2 FPV Headset System w/Trinity Head Tracker and CMOS Camera

New product

Attitude, already the best all round FPV headset in the Fat Shark lineup, has been supercharged with the addition of the revolutionary 3-axis Trinity head tracker. The 16bit, 9DFO 3-axis head tracker is nothing short of perfection that binds camera motion to head motion so accurately and smoothly that it creates the most convincing immersive FPV experience available.

More details

$285.00 tax excl.

  • The 35 degree FOV display strikes a perfect balance between large screen immersion and compact pixel density clarity. The Attitude V2 sports the same polarized backlight technology used in the gorgeous Dominator display for vibrant colors and has adjustable IPD for dialing in the optic sweet spot.

    The Attitude utilizes NexwaveRF technology with high pass filtering to make it impervious to 433Mhz and 2.4Ghz UHF radio interference. The quality extends to the exterior with its sleek ergonomics, rubberized texture shell, tactile motion IPD sliders and secured rubber eye cups, the AttitudeV2 headset looks and feels great from the inside out.

    To shorten your journey to FPV Nirvana, the AttitudeV2 bundle includes the high performance 600TVL FPV tuned CMOS camera for RTF out of the box (pan/tilt/roll mount not included).

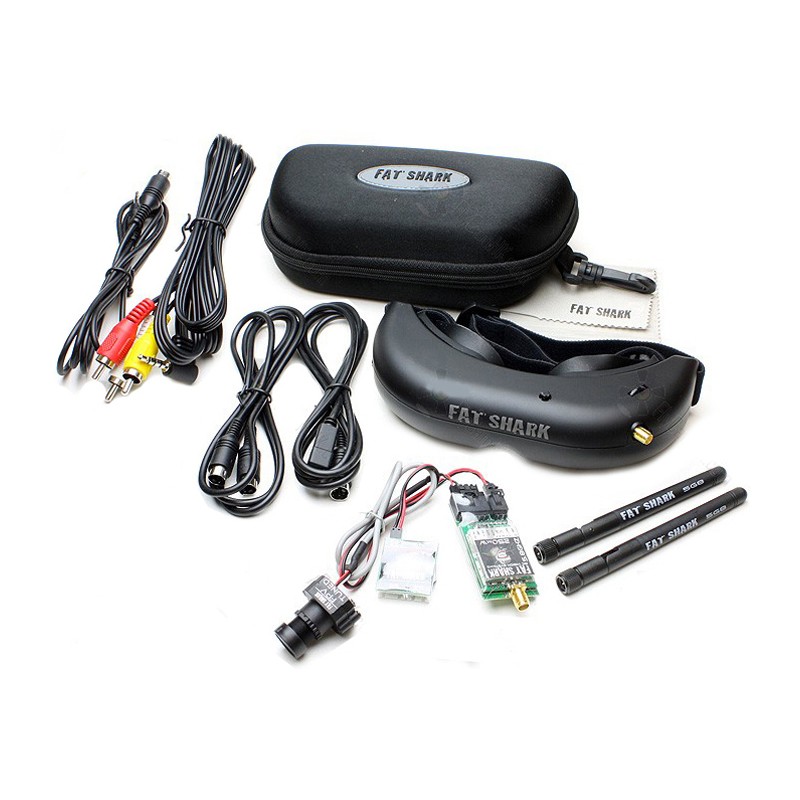

    Includes:

    • Atttitude V2 headset (with integrated 5G8 RX and Trinity head tracker)
    • 1/3" CMOS 600TVL FPV tuned NTSC/PAL selectable camera
    • 250mW 7ch 5G8 TX
    • 3dBi 5G8 antenna x 2
    • 1m AV cable
    • Futaba 6p data cable
    • 3.5mm JR data cable
    • ezUHF MiniDIN data cable
    • Zipper carry case
    • Lens cleaner cloth
    • User manual


    Headset Specifications:

    • Optics: FOV (field of view): 35°diagonal (Image size: 1.3m @ 2m)
    • Interpupillary (IPD) distance: 59~69mm (adjustable)
    • Supports optional diopter lens inserts: -2, -4, -6 dpt
    • Audio: Stereo
    • User Controls: Channel selection/ head tracker reset
    • Electrical: Power supply: 7~13V (2S/3S supply)
    • Power consumption: 350mA
    • Antenna: 5G8 3dBi dipole (circular polarized compatible)
    • Display: Full color LCD LED backlit Kopin CyberDisplay 922,000 pixels binocular display (640 X 480 VGA) NTCS/PAL auto selecting
    • Head Tracker: Trinity 16bit 9DFO 3-axis
    • Battery: 2S 7.4V 1000mAh (required, not included)
    • Weight: 150g


    Transmitter Specifications:

    • Power supply: 7~13 V (2S/3S supply)
    • Power rating: 310mA @7.4V
    • TX power: 250mW
    • Antenna: External dipole (circular polarized compatible)
    • Size: 55x26x11mm
    • Weight: 22g (w/antenna)


    Camera Specifications:

    • Power supply: 3.5~5V
    • Power rating: 60mA @5V
    • Imager: 1/3" CMOS 600TVL, FPV tuned light handling, NTSC/PAL selectable
    • Lens: 2.8mm IR coated, 100° diagonal FOV (ideal for fixed camera)
    • Lens extrude: 15x14mm diameter
    • Size: 21x21x12mm
    • Weight: 15g


    Interface:

    • 3.5mm AV in/out port
    • 3.5mm stereo earphone port
    • PS/2 DIN head tracker data port


    Operating Frequencies:
    5740 MHz, 5760 MHz, 5780 MHz, 5800 Mhz 5820 MHz 5840 Mhz 5860 MHz
