SkyZone Sky-702 5.8GHz Diversity 7-inch LCD Monitor Receiver with Folding Sunshade

> >>SkyZone Sky-702 5.8GHz Diversity 7-inch LCD Monitor Receiver with Folding Sunshade
SkyZone Sky-702 5.8GHz Diversity 7-inch LCD Monitor Receiver with Folding Sunshade View larger
Previous Next

SkyZone Sky-702 5.8GHz Diversity 7-inch LCD Monitor Receiver with Folding Sunshade

SKY-RC702

New product

This is an all-in-one 5.8GHz ground station, ready to go, just power it with a 12v power source like a 3s LiPo battery. With the added benifit of 2 built in 32ch 5.8GHz receivers, you can mix and match different 5.8GHz antennas to increase your video range and coverage. The monitor will show static and won't go to blue-screen when the signal is weak or lost, perfect for FPV.

More details

$162.00 tax excl.

  • Features:

    • Built-in Dual Receiver Automatically for best reception Automatic Antenna Switching
    • Not affected by 2.4GHz R/C Radios
    • AV Receiver with Diversity inputs
    • Small, light weight, durable
    • No Blue Screen
    • Folding sunshade
    • 2 DC port
    • 4 Bands and total 32 Channels


    Specifications:

    • Screen size:7-inch
    • Screen type: TFT LCD Screen/long life, LED backlight
    • Resolution: 800x480
    • Brightness: 450cd/m2
    • Contrast: 500:1
    • View Angle: 140/120degree (Horizontal/Vertical)
    • Working Voltage: DV 7-12V(center positive) or 11.1V Li-battery
    • Power Consumption: < 8w
    • Size: 180mm x 120mm x 23mm
    • Antenna Connection: SMA
    • Built-in 5.8Ghz Dual diversity receiver automatically for best reception
    • Built-in 2CH 5.8Ghz AV output and 1CH AV input
    • Support 9 languages menu selection
    • Working temperature: -10℃~+ 65 ℃

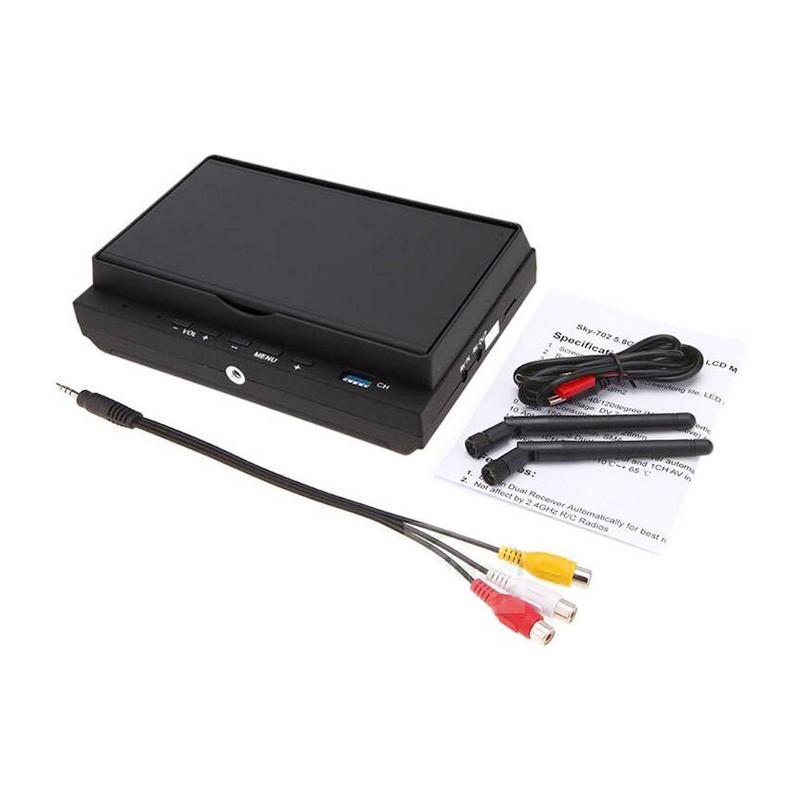

    Package Included:

    • 1 x Skyzone SKY-702 Monitor
    • 2 x antenna
    • 1 x cable set
    • 1 x Sunshade
