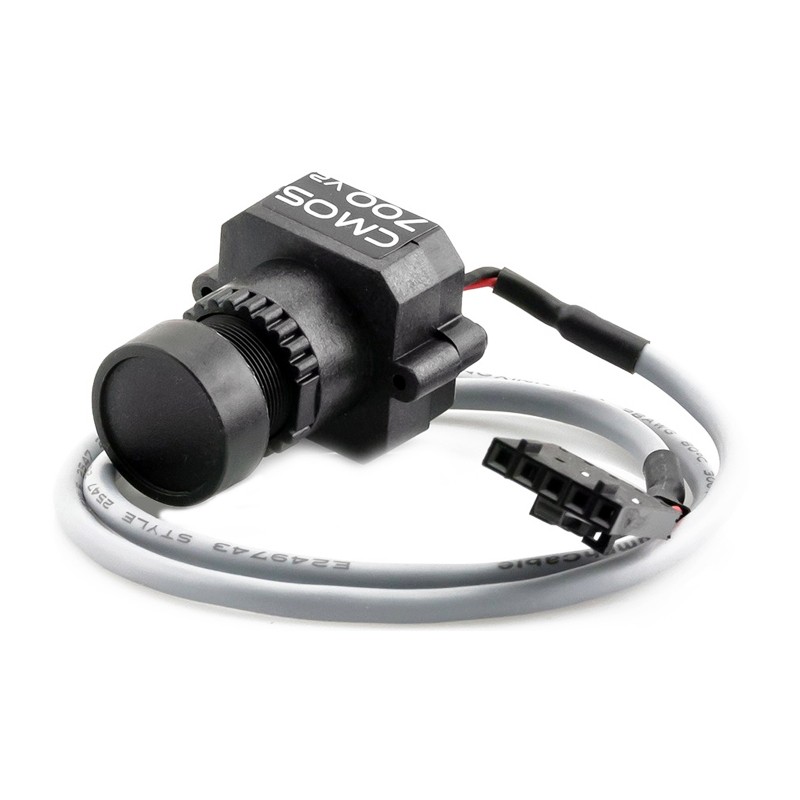

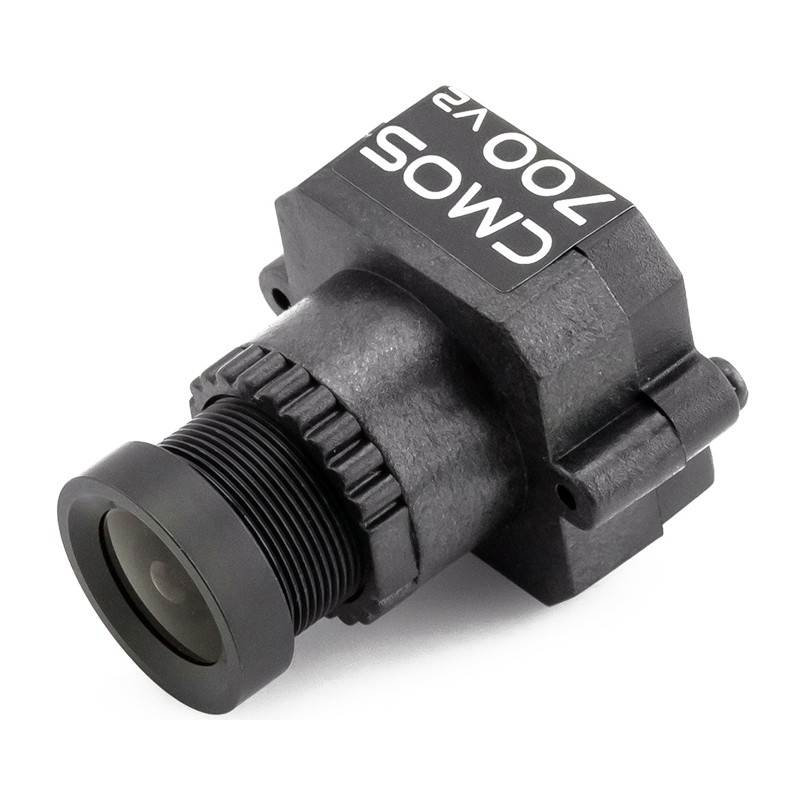

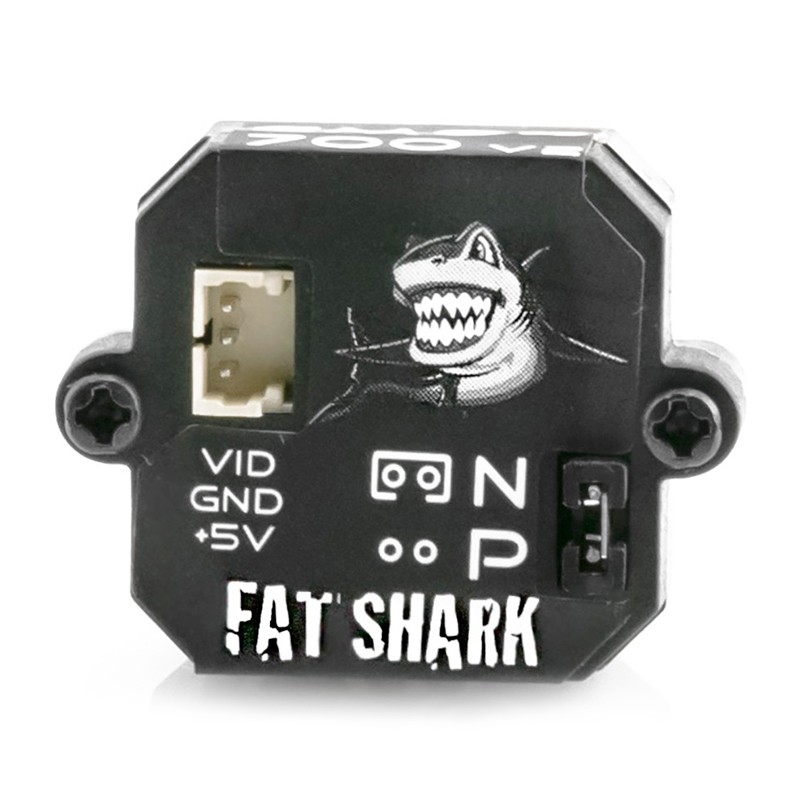

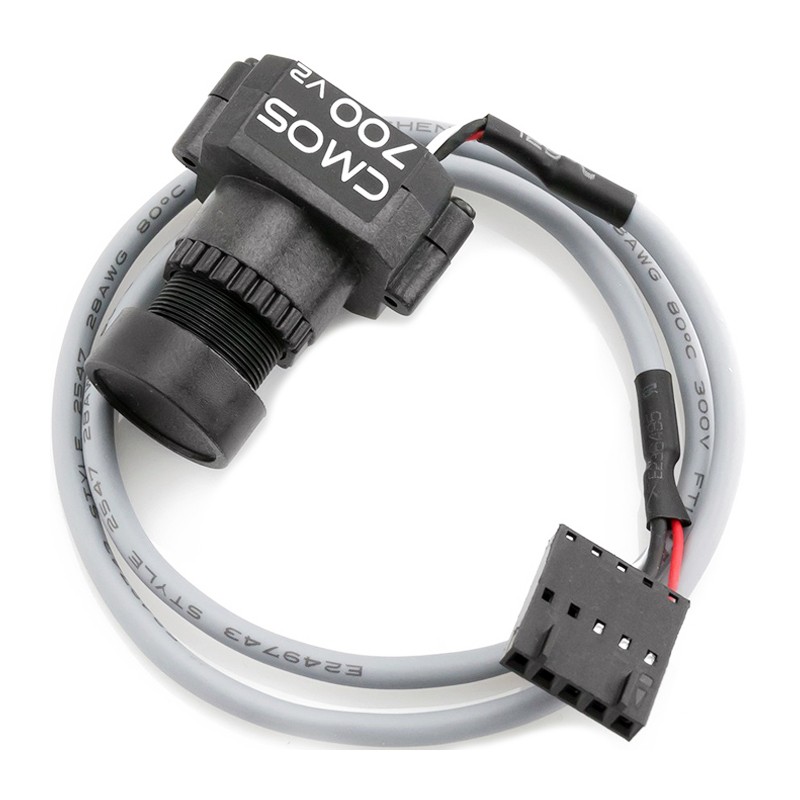

Fat Shark 700TVL WDR Tuned CMOS - Fixed Mount

New product

Latest generation high resolution 700TVL WDR CMOS fixed mount camera has FPV tuned light handling and is NTSC/PAL selectable.

More details

$60.00 tax excl.

  • Features:

    • Specially tuned 700 TV line (TVL), 1/3" CCD optimized for FPV applications
    • Metal housing helps protect electronics and prevent RF interference
    • Low light performance of 0.08 lux
    • NTSC composite video output for transmitter (available separately)


    Specifications:

    • Sensor: 1/3" Sony CCD image sensor
    • Resolution: 700 TVL (TV lines)
    • Minimum Illumination: 0.08 lux
    • Standard: NTSC / PAL
    • Power Requirements: 3.3 to 5 VDC
    • Power Consumption: 80 mA at 5 V
    • Dimensions: With Lens: 1 x 1 x 0.5" / 25 x 25 x 12 mm
    • Weight: With Metal Case: 1.9 oz / 55 g
