MyFlyDream AutoPilot

New product

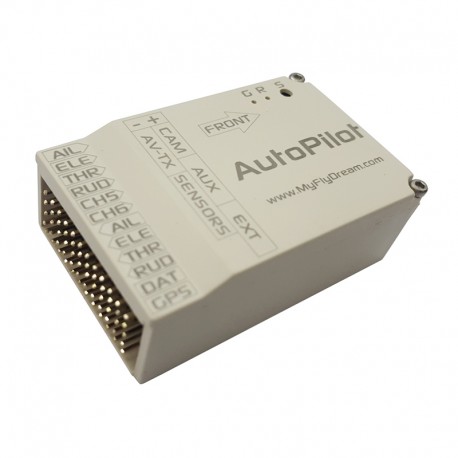

MFD AutoPilot has build-in 3-axis gyro, 3-axis Acceleration sensor,3 axis digital compass and barometer. AutoPilot has two CPUs, one for the MFD attitude calculation, the other in charge forthe OSD and fly logic control.

Based on this advanced hardware AutoPilot can be used for plane stabilization, way point with altitude flight control, and Autopilot with Return to home functionality (RTH).

More details

Warning: Last items in stock!

$210.00 tax excl.

  • Features:

    • All In One design. AutoAntennaTracking/AHRS based AutoPilot(3-Axis gyro+accelerometer
    • +magnetic compass + barometer)/Advance OSD/Power module/... are all built in this small,light unit.
    • Fully compatible with AAT system
    • Rich extension ports for Sonar/Air Speed Sensor/Other accessories.
    • AHRS is build-in with Anti-vibration design, easy to install on the plane without any damper.
    • Compatible with MAVLink protocol. Support APM Planner Ground Station software. You can synchronize the way points by clicking one button. There are also some GS Apps for mobile phones available.
    • Support PPM/PWM input.
    • All functions/parameters can be accessed by the transmitter and OSD menu.
    • The first AutoPilot transmitting downlink data for tracking via both VIDEO and AUDIO signals.
    • Shipped with customized shielded cables for camera/video transmitter, GPS, 100A current sensor and USB programmer for firmware update. easy to setup


    Specifications:

    • Power supply: 7~20V (recommended 12V)
    • Current consume: <200ma@12V(included GPS, without other electronics) PWM input channels 6 (PWM input setup) or 8(PPM input setup)
    • PWM output channels: 4
    • Maximum rolling angular: 2000 degree/S
    • Flight modes: MANual, STaBlizer, CIRcle, WayPoinT, ReturnToHome Max Waypoints: 10
    • Support plane layouts: Normal, Wing(Ailvator), V-Tail

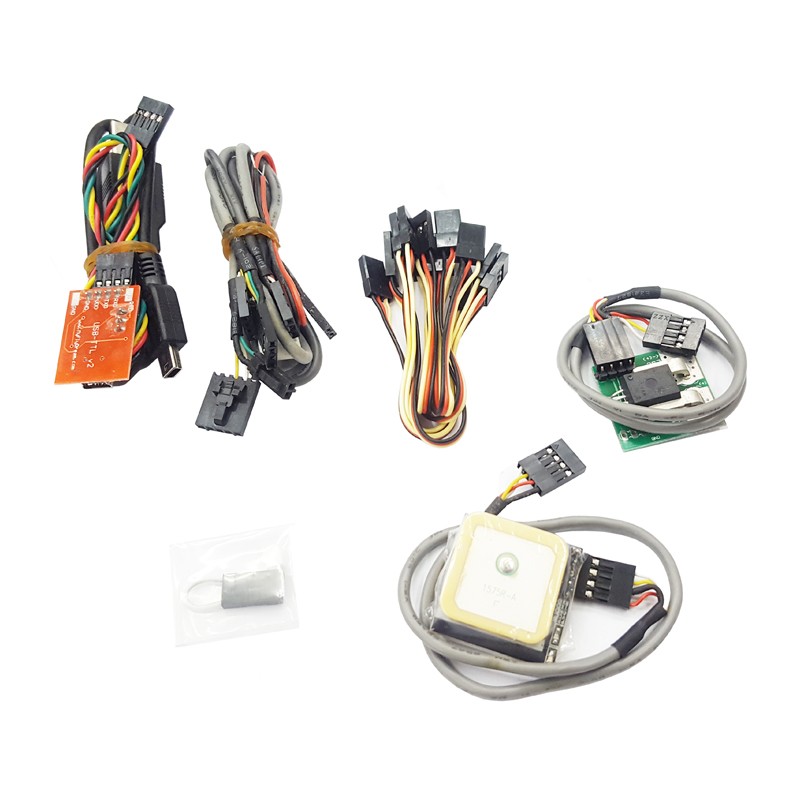

    Includes:

    • MFD AutoPilot unit x 1
    • GPS x 1
    • 100A Current sensor x 1
    • Customized shielded cables for Camera/VideoTX
    • Cables for RC-RX
    • Jumper, and header for camera connector
    • USB-TTL board for firmware update x 1
