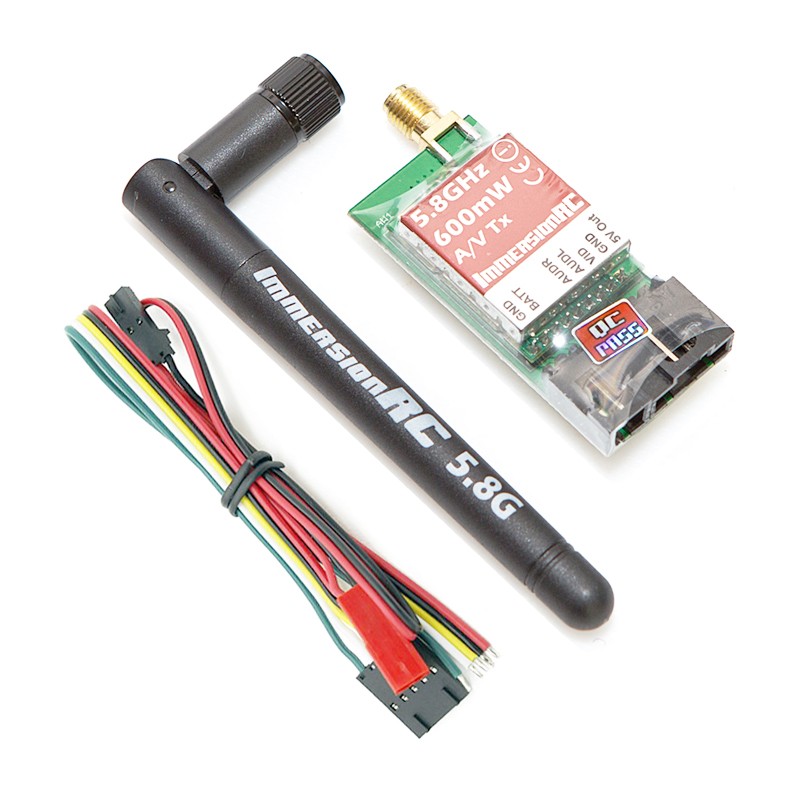

ImmersionRC 5.8GHz 600mw Audio / Video Transmitter View larger

Online only

ImmersionRC 5.8GHz 600mw Audio / Video Transmitter

TX_5G8_600

New product

One of the most popular A/V transmitters in the FPV hobby. An efficient, lightweight (heatsink and fan-free) transmitter, which packs quite a punch.

More details

$65.00 tax excl.

  • The 600mW transmitter includes a built-in super-quiet switching regulator, which powers not only the transmitter, but a connected 5v camera. No need for external step-down supplies, and no need for filtering, or a second battery. Run the 600mW directly from your flight pack!

    Supplied connectors are standard for all ImmersionRC/FatShark equipment, including cameras, and OSDs. Plug and Play Fly!


    Stay Legal…

    Many A/V transmitters sold for FPV use have channels which fall outside of the legal bands (ISM, and Amateur Radio). The channel set used ImmersionRC and FatShark all fall within the legal bands, and will not raise the eyebrows of the authorities.

    Note that a license may be required to operate this transmitter in certain countries.

    • 600mW (27.5dBm, +/- 1dBm) of clean output power
    • SMA Antenna connector, with supplied 5.8GHz Rubber-duck antenna
    • Frequencies: 5740, 5760, 5780, 5800, 5820, 5840, 5860MHz
    • All Frequencies within legal bands (ISM + Ham Radio)
    • Not affected by 2.4GHz R/C radios!
    • May require a license to operate


    Specifications:

    • Power Output: 28dBm (600mW)
    • RF Impedance: 50 ohms
    • Frequency, Band 1: 5740, 5760, 5780, 5800, 5820, 5840, 5860MHz
    • Audio: Stereo, Subcarriers on 6.0, and 6.5MHz
    • Modulation: FM, Audio and Video
    • Length: 50mm
    • Width: 23mm
    • Height: 15mm
    • Weight: 18g
    • Power Requirements: 2S-6S LiPo (6V – 25V)
    • Power Consumption: 3W


    Included:

    • 1 x 3dBi 5.8Ghz omni-directional antenna (SMA connector)
    • 1 x Video cable (20cm 5-pin Molex-SL terminated in wire ends)
    • 1 x DC power cable (24cm 2-pin Molex-SL terminated in BEC-style connector)
