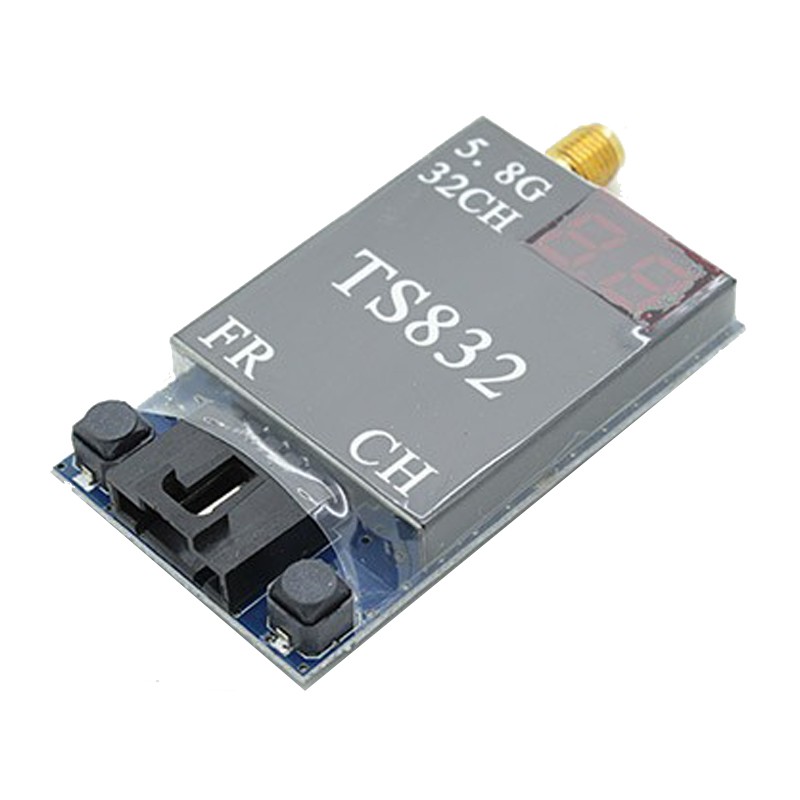

The TS832 Transmitter packs a whopping 600mW of ultra clean 5.8GHz power! A must for those looking for longer range and locked in video. The TS832 is transmitting a full range of 32 channels and uses an easy to use 2 button interface, it also comes with a clean pre-wired harness, and only weighs in at a scant 21grams, it’s Perfect for a wide range of aircraft!

*For best range and video link stability we recommend using the SkyZone 5.8GHz Cloud Spirit circular-polarized Antenna Set (SMA-RP) available below in the accessory’s tab

Features:
• 32 channels: Cover A, B, E bands and F bands
• Two switching buttons for the band and channel
• Two digits display for  the band and channel
• Power off memory for last channel and band

Specifications:

• Video format supported: NTSC/PAL
• Antenna connection: RP-SMA, jack
• Power input: 7.4-16V (3S Lipoly suggested)
• Transmitting power: 600mW
• Antenna gain: 2dbm
• Working current: 220mA at 12V
• Video bandwidth: 8Mhz
• Audio bandwidth : 6.5Mhz
• Weight: 21g
• Dimension: 54x 32x 10mm(excluding antenna)

Frequency range:
FR1 5865,5845,5825,5805,5785,5765,5745,5725
FR2 5733,5752,5771,5790,5809,5828,5847,5866
FR3 5707,5685,5665,5645,5885,5905,5925,5945
FR4 5740,5760,5780,5800,5820,5840,5860,5880
