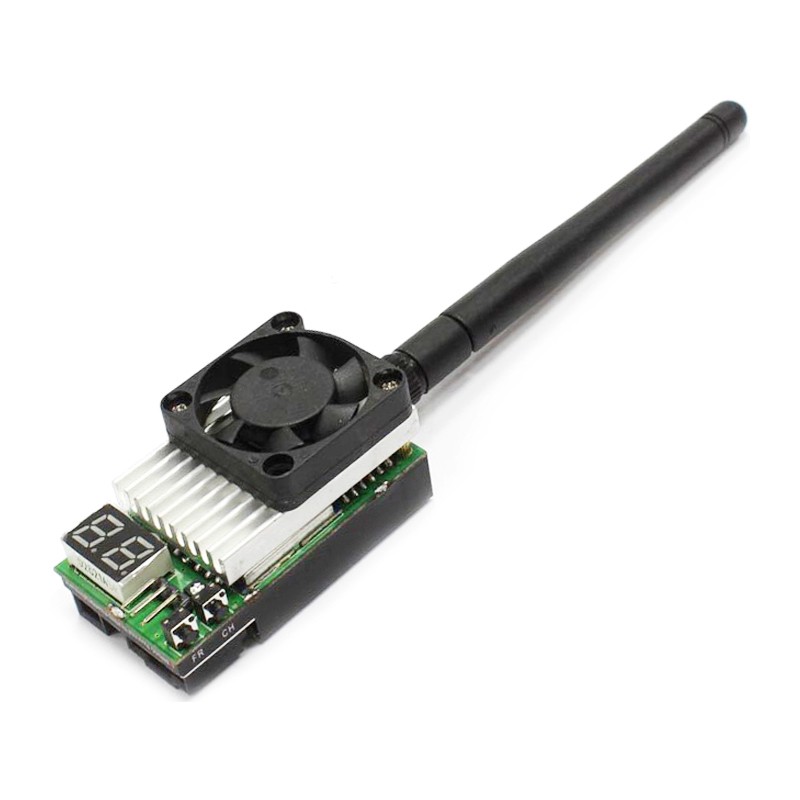

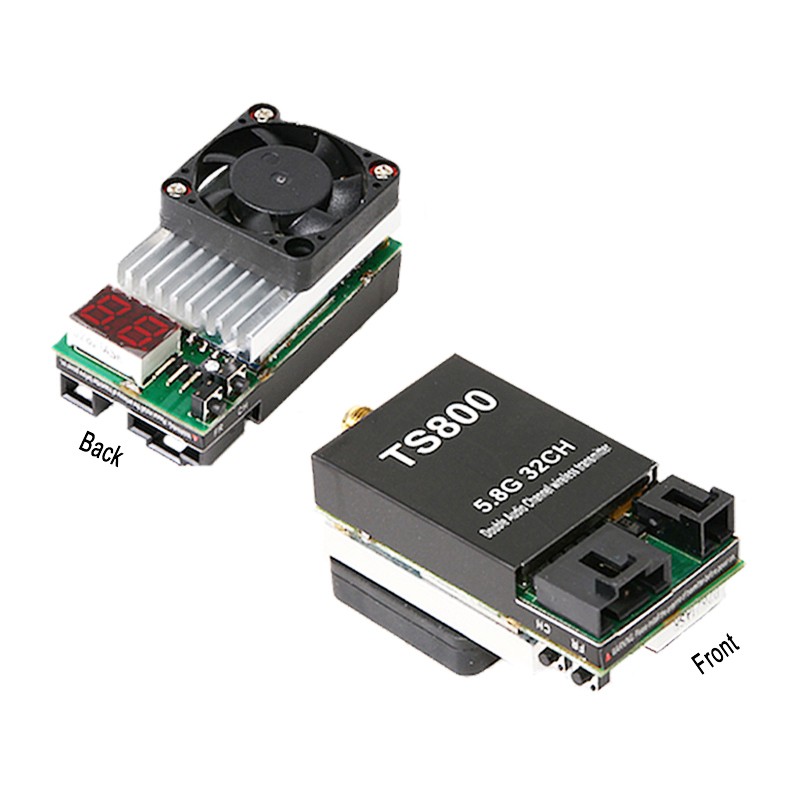

The TS800 Transmitter packs a whopping 1500mW of ultra clean 5.8GHz power! A must for those looking for longer range and locked in video. The TS800 can transmit a full range of 32 channels and features an easy to use 2 button interface, it also comes with a clean pre-wired harness, and only weighs in at a scant 50 grams, it’s perfect for any long range aircraft!

The TS800 boasts an impressive new feature, the transmitting band and channel can be changed remotely by the user with a 3 position switch on their radio. This means you can quickly change to a clear band and frequency should you encounter interference on your existing channel.

Features:

• 32 Channel 5.8GHz Covering A, B, E and F bands
• 1500mW TX power
• Two digits display for the band and channel
• Power off memory for last channel and band
• Remote channel switching via spare channel on RC transmitter.
• 7~28V input power

Specifications:

Output Power: 1500mW

• Frequency Control: Built-in frequency & phase lock loop
• AV input: Analog AV signal input
• ANT connector: RPSMA Jack
• Power Supply: DC 7-28 volts (2s~6s lipoly)
• Camera power output matches input power (no internal step-down)
• Size: 54x32x65mm
• Net weight: 50g (w/o antenna and wire)
• CH/Freq. select: Remote or Manual
• Channels: 32 (compatible with Skyzone, Boscam, Fatshark and Aomway)
• Antenna connection: SMA

Frequency and channel frequency table:

Compatible with Fatshark, ImmersionRC Boscam, Foxtech and other generic branded FPV receivers within the same frequency range.

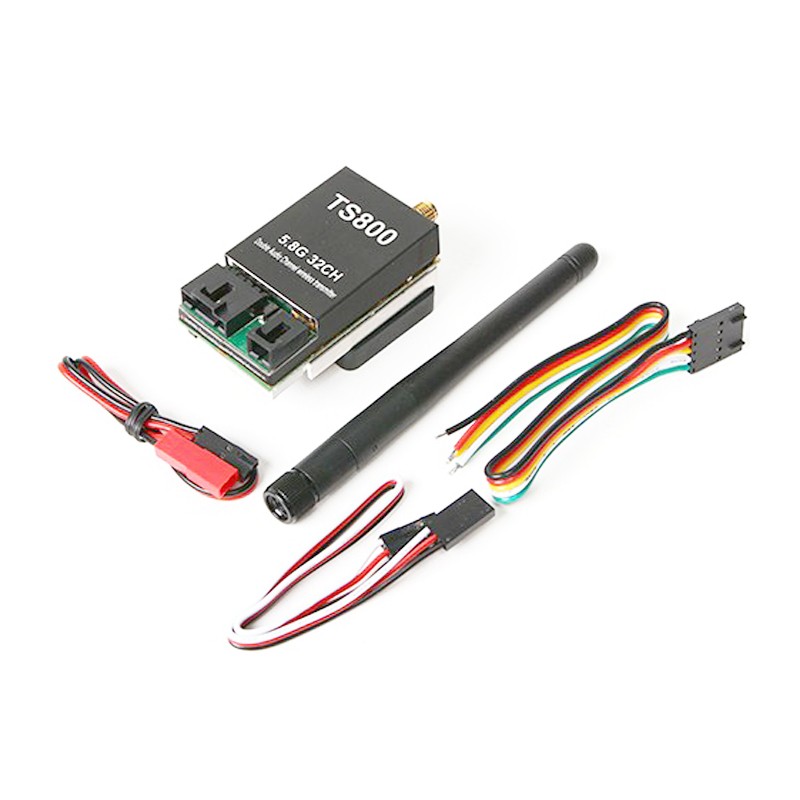

Included:

• 1 x Transmitting unit (TS800)
• 1 x Antenna (2db)
• 1 x Power cable (JST)
• 1 x AV cable with bare wire leads
• 1 x Male to Male servo cable for RC connection
• 1 x User manual
