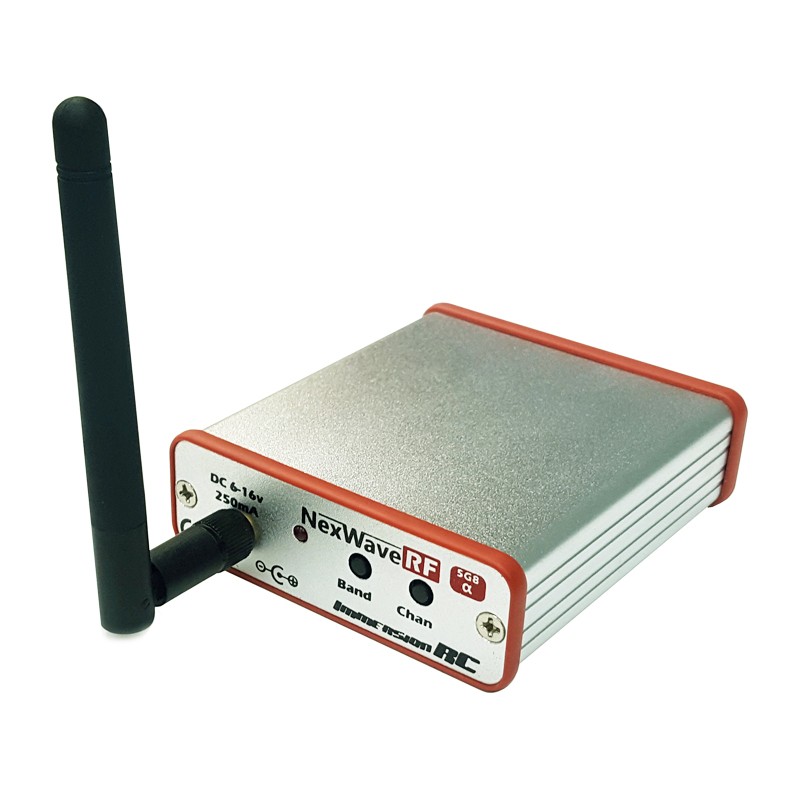

ImmersionRC Uno5800 5.8GHz V4 A/V Receiver

UNO5800V4

New product

This is the ImmersionRC 5.8GHz Uno5800 V2 A/V Receiver. The Uno5800 includes ImmersionRC’s NexWaveRF technology, increasing inter-brand compatibility, and providing clean video in even the harshest of RF conditions.

More details

$68.00 tax excl.

  • 32 Channel Support
    Version 4 of the Uno5800 introduces 32 channel support. Four bands are fully supported, including the standard ‘Airwave’ band used for all ImmersionRC and FatShark 5.8GHz transmitters to date. All other common 5.8GHz FPV frequencies are also fully supported, including Boscam, Team Black Sheep, DJI, etc.

    Filtered Input
    To eliminate the range-reducing effects of co-located UHF, or 2.4GHz uplinks, the Uno5800 is equipped with a high-performance RF filter.

    The Smart Receiver
    The Uno5800 is the first in a line of ‘smart’ receivers, designed for single-cable, plug and play, integration with the ImmersionRC Antenna Tracker (v2) system. Power, Audio, Video, and a bidirectional data link, are all passed through a single Mini-Din connector, connected to the Antenna Tracker.

    A Patch Above
    Directly connect the Uno5800’s SMA input to an ImmersionRC 5.8GHz, 13dBi patch antenna for a serious range boost.
    Install the pair on an antenna tracker to follow a model around the sky. The 13dBi patch provides at least a factor of 4 increase in range, even for license-free 25mW Transmitters.


    Features:

    • 32 Channel support, ImmersionRC/FatShark/Airwave, Boscam, Team Black Sheep, DJI
    • Exclusive high quality NexWaveRF receiver technology

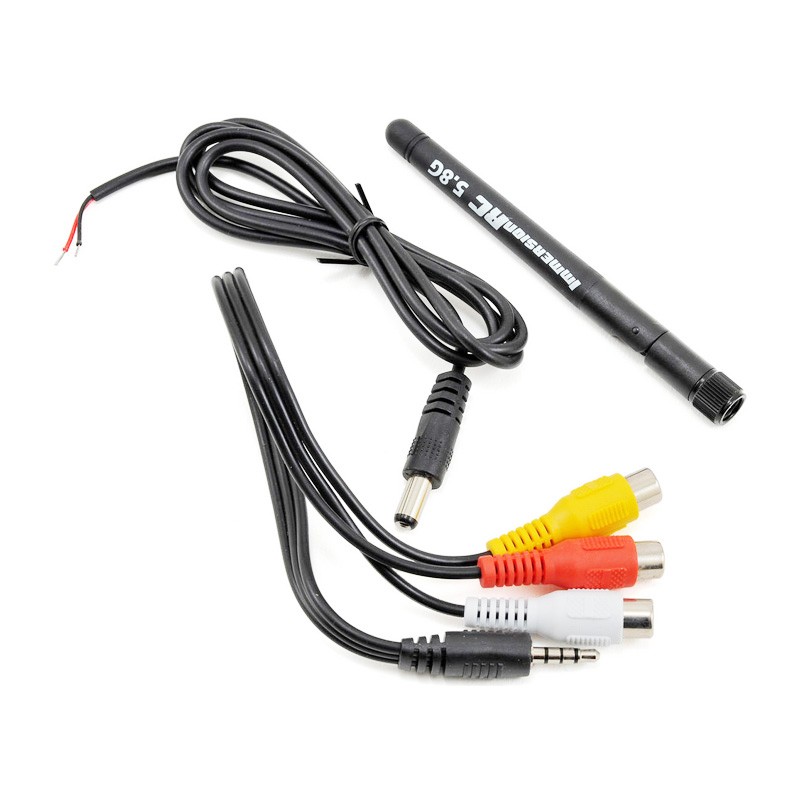

    • Triple A/V output, for three viewing/recording devices
    • Single-button user interface, and remote control from the groundstation
    • ~1km range with 25mW CE-Legal transmitters


    Specifications:

    • Dimensions: L=85mm x W=25mm x H=70mm
    • Weight: 120g
    • Sensitivity: better than -90dBm
    • RF Impedance: 50 ohms


    Frequency Bands, v4:

    1. Frequency, Band 1: 5740, 5760, 5780, 5800, 5820, 5840, 5860MHz
    2. Frequency, Band 2: 5705, 5685, 5665, 5645, 5885, 5905, 5925, 5945MHz
    3. Frequency, Band 3: 5733, 5752, 5771, 5790, 5809, 5828, 5847, 5866MHz
    4. Frequency, Band 4: 5865, 5845, 5825, 5805, 5785, 5765, 5745, 5725MHz


    Frequency Bands, v4.1 (with RaceBand):

    1. Frequency, Band 1: 5740, 5760, 5780, 5800, 5820, 5840, 5860MHz
    2. Frequency, Band 2: 5658, 5695, 5732, 5769, 5806, 5843, 5880, 5917MHz
    3. Frequency, Band 3: 5705, 5685, 5665, 5645, 5885, 5905, 5925, 5945MHz
    4. Frequency, Band 4: 5733, 5752, 5771, 5790, 5809, 5828, 5847, 5866MHz
    5. Frequency, Band 5: 5865, 5845, 5825, 5805, 5785, 5765, 5745, 5725MHz



    • Audio: Stereo, Subcarriers on 6.0, and 6.5MHz
    • Modulation: FM, Audio and Video
    • Video Impedance: 75 ohms
    • Power Requirements: 6-16v
    • Power Consumption: ~100mA
