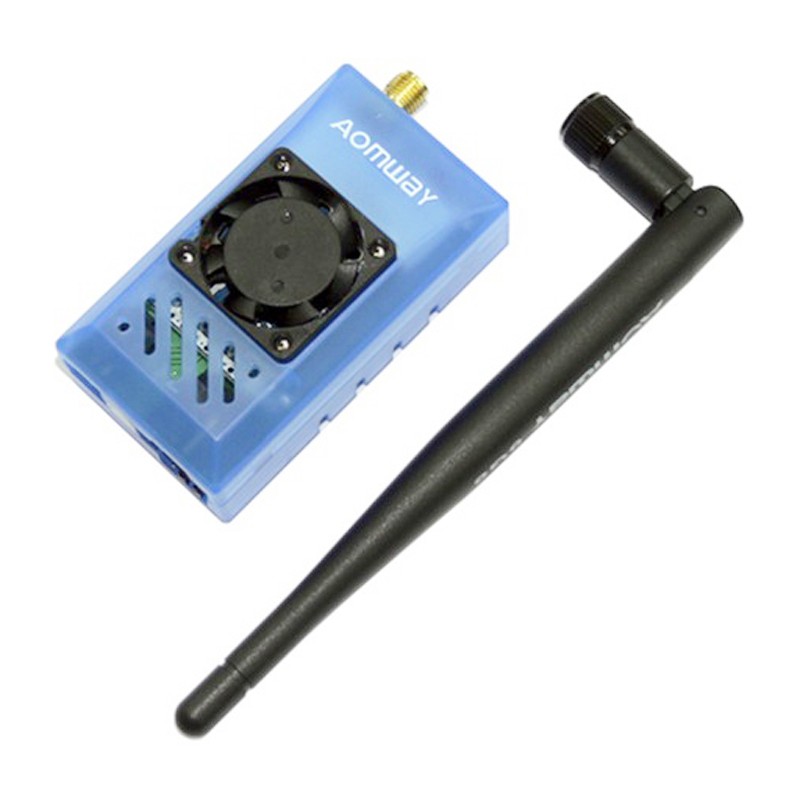

The TX1000 video transmitter packs 1000mW of ultra clean 5.8GHz power in a conveniently sized and durable video/audio package! Adjustable frequency selection and a selectable 5 or 12 Volt camera power output makes this a must have for those looking for a robust transmitter with good performance.

Note: Please check with your local authorities regarding the operation of this equipment before you purchase. Regulations on power output, usable frequencies and licenses’ to operate vary from region to region.

Note: For best range and video link stability we recommend using a circular-polarized Antenna  (SMA) available below in the accessory’s tab

Features:

• Upgraded video circuit and sensitivity, with 1W telemetry
• Blue semi - transparent shell, more convenient for use
• 5.8GHz band FM audio/video transmit synchro
• Stereo, left/right audio channel independent transmission

Specifications:

• Range: approximately 32KM
• Low consumption: 12V 700mA
• Power: 1000mW/30dBm
• Frequency: 32Ch
• Built-in two emission frequency: 5705-5860MHz
• Format: NTSC/PAL
• Wide input voltage: DC7-16V
• Output Voltage for CMOS camera operation: 5V or 12V (switch through jumper)
• Current: 12V 650mA
• Antenna Connection: SMA
• Size: 63x35x24mm
• Weight: 42g with case

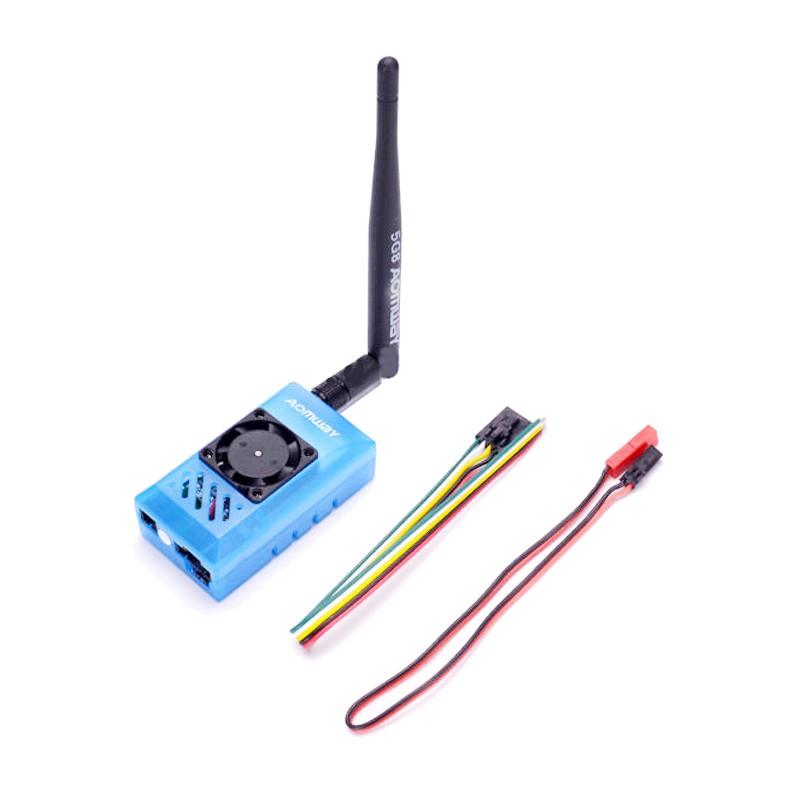

Package Includes:

• One 1000mW Transmitter
• One 3db Antenna
• One Video cable
