Custom designed for the FPV market, it pushes the limits of range on 5.8 GHz, and with 14dBi gain multi-km flights are possible even on CE-legal 25mW systems. For 600mW systems, it’s time to start worrying about the range of the control link, since with a combination of this antenna, and a CP Clover, the video range can greatly exceed the control range of most 2.4GHz radios.

Precision manufactured with very tight tolerances and 100% tested to ensure maximum range and performance. It’s Light enough to be mounted directly to a pair of goggles, or directly onto the front of a monitor or receiver with its flexible stem.

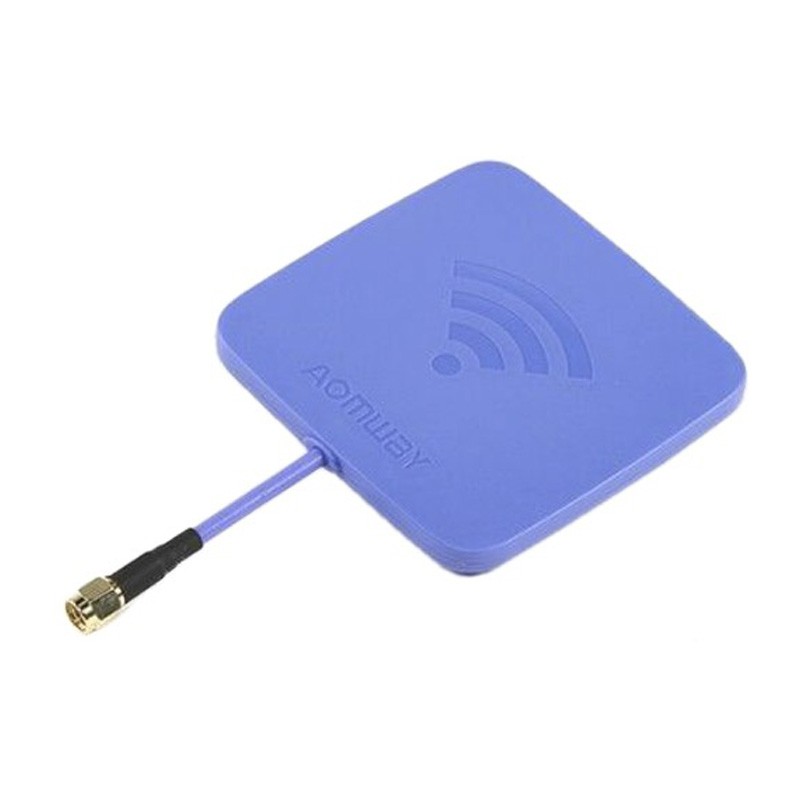

If you’re starting to feel the limitations of your 5.8 GHz system this CP Patch antenna can breathe new life into your FPV

Specifications:

• Connector: SMA
• Polarization: Right-hand circular 5.8GHz ISM Band
• Gain: 14dBi
• Beam width: 35 degrees (H + V)
• F/B ratio: 26dB, VSWR is < 1.5:1 (5740 - 5860MHz).
• Impedance: 50 ohms.
• Size: 86x86mm w/60mm stem
