The FPV’ers Antenna

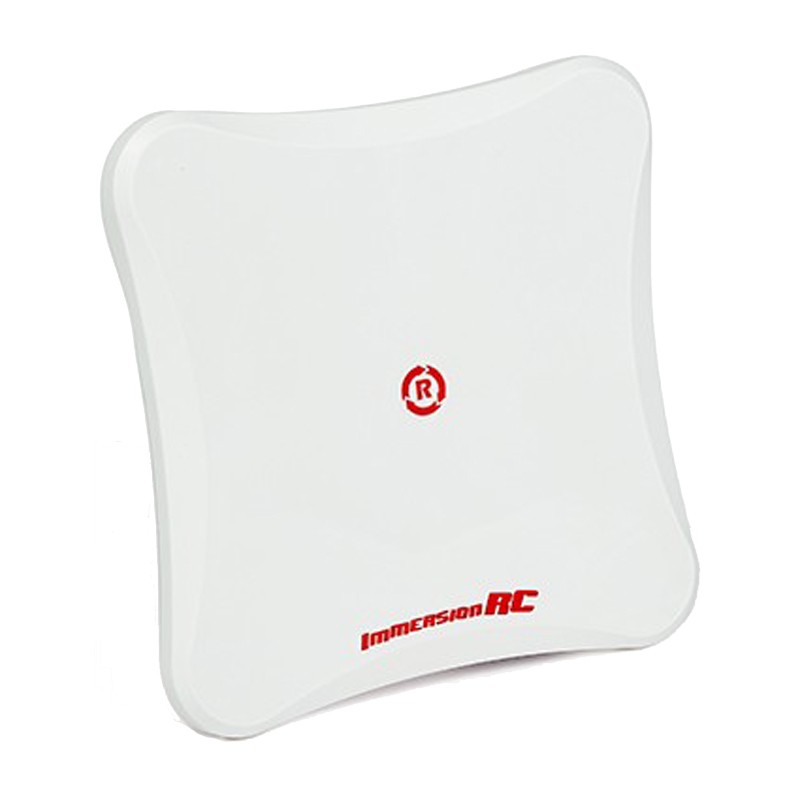

The SpiroNET 2.4GHz circular polarized patch antenna from ImmersionRC offers right-hand circular polarization. Each antenna is individually tested down to a T to guarantee reliable and consistent performance. These antennas are far from the run of the mill ‘home brew’ production, these are tried and tested and put through the wringer in order to bring you the best.

• 2.4GHz Band, 13dBi gain
• 35 degree Beam Width (H+V)
• F/B Ratio > 35dB, VSWR < 1:1.35 @ Center Freq.
• Circular Polarization
• Fully protected against the elements
• Individually tested
• Greatly increase usable range compared with a traditional antenna

Pair with an Uno2400

An ideal match, the SpiroNET 2.4GHz Patch, with the new Uno2400 super-sensitive A/V receiver.

Mount the Uno directly on the back of the Patch to eliminate cable losses, and for a dream system, guide the antenna using the new EzAntennaTracker v2.

Specifications:

• Polarization: RHCP, right hand circular polarization
• Gain: 13dBi
• Beam: 35 degrees (H+V)
• F/B Ratio: > 35dB
• VSWR: < 1:1.35 @ Center freq.
• Impedance: 50 ohms

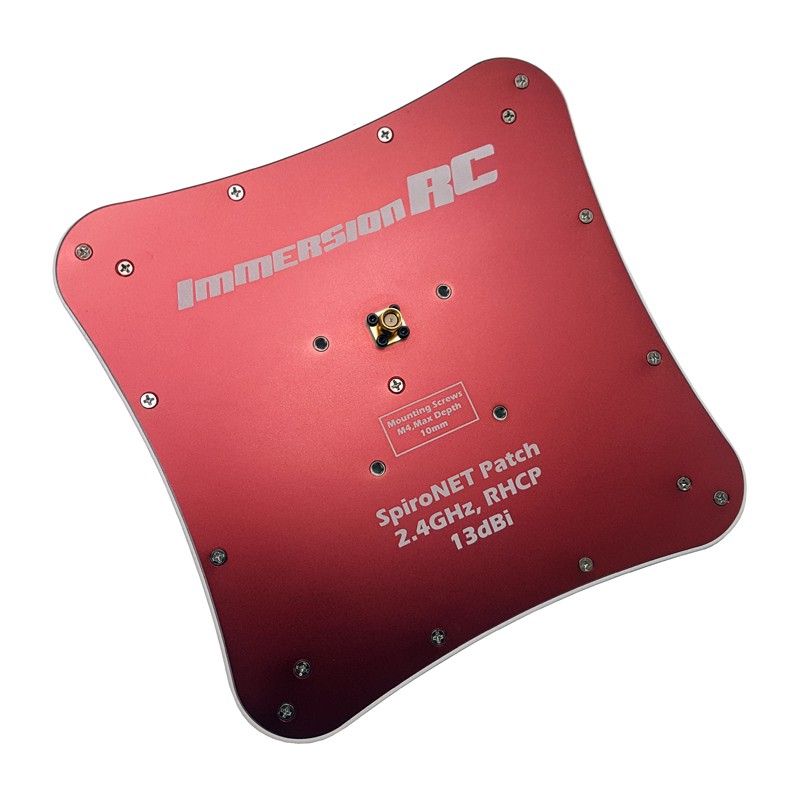

• Mounting Holes: 4x M3,  50mm between hole centers
• Length: 200mm
• Width: 200mm
• Height: 15mm
• Weight: 300g
