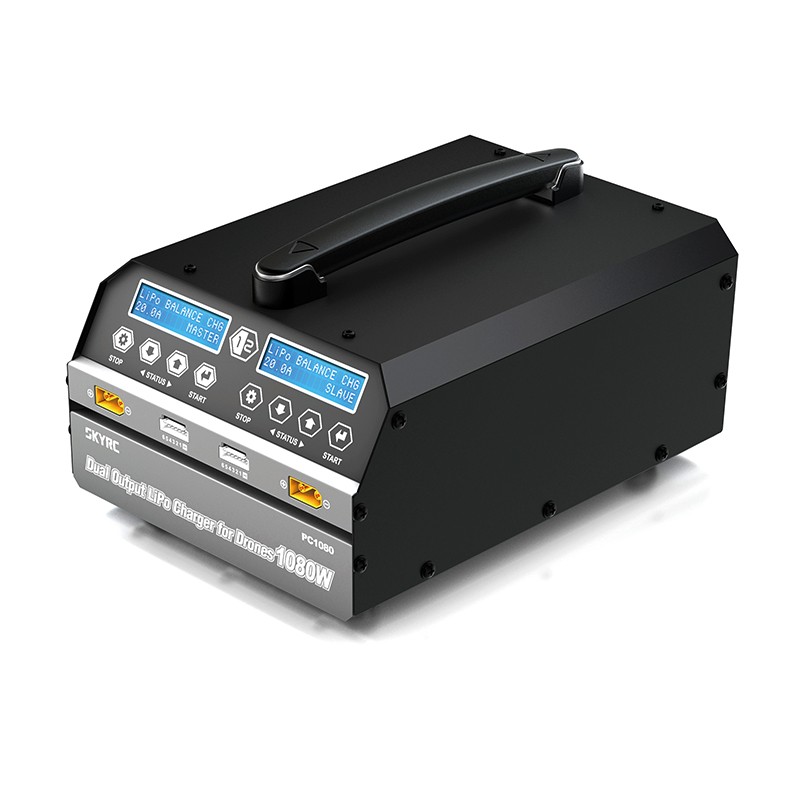

SkyRC PC1080 Dual Output LiPO Charger for Drones

New product

Adjustable charging / 3 working modes / LCD screen.

SkyRC PC1080 is a dual channel 6S LiPo charger for industrial application drones. It is reliable, safe and easy to operate while with comprehensive functionality, like battery voltage meter, internal resistance meter, LiHV charging mode, also the time saving synchronization mode.

More details

Warning: Last items in stock!

$330.00 tax excl.

  • High Frequency Capacitor
    Using high spec large capacitor, ensures the charger can work properly for longer period of time.
    Active PFC
    Active PFC uses a circuitry to correct the amount of power drawn to obtain the best ratio of power factor, achieving high efficiency, 93%. Which makes the product more stable and reduces the interference to the power grid.
    Switched-mode Power Supply
    Accepts power from mains supplies throughout the world.
    Active PFC
    Active PFC uses a circuitry to correct the amount of power drawn to obtain the best ratio of power factor, achieving high efficiency, 93%. Which makes the product more stable and reduces the interferences to the power grid.

    Without PFC

    AC Input Power 100%

    DC Output Power 70%

    With PFC

    AC Input Power 100%

    DC Output Power 93%

    Automatically Charging 12 Packs of Batteries in Sequence
    PC1080 pairing with G630 charging hubs, an automatic charging management system, can charge 12 packs of LiPo batteries in sequence, according to its remaining capacity (percentage), the one with highest capacity will be charged first (both channels applies the same rule).

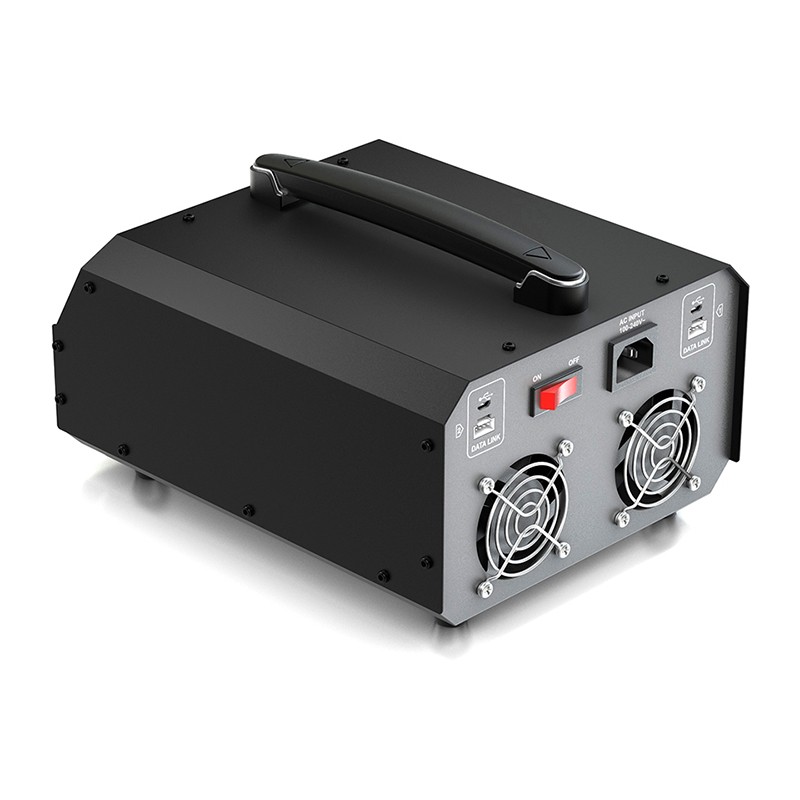

    Dual Ball Bearing High Speed Cooling Fans
    Dual ball bearing high speed cooling fans with wing type blades design, provides good ventilation and a cool working condition.

    Specifications:
    • Input Voltage: 100-240V
    • Output Power: 1080W (540W x 2)
    • Discharge Power: 100W (50W x 2)
    • Charge Current: 1.0-20.0A x 2
    • Balance Current: 1.2A
    • Battery Type: LiPo/LiHV
    • Battery Cell Count: 6S
    • Working Mode: Balance Charge Mode, Storage Mode, Charge Mode
    • Net Weight: 4.88kg
    • Size : 272x202x118.6mm

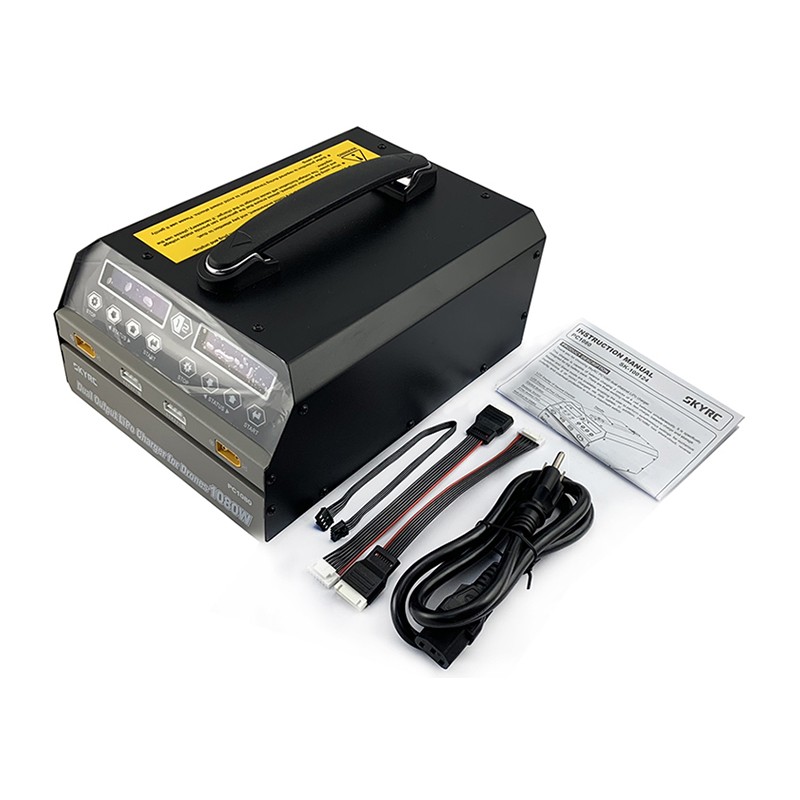

    Package Includes:
    1 x PC1080 Dual Channel LiPo Charger
    1 x AC Power cord
    1 x Synchronous data connectors
    1 x English Manual
