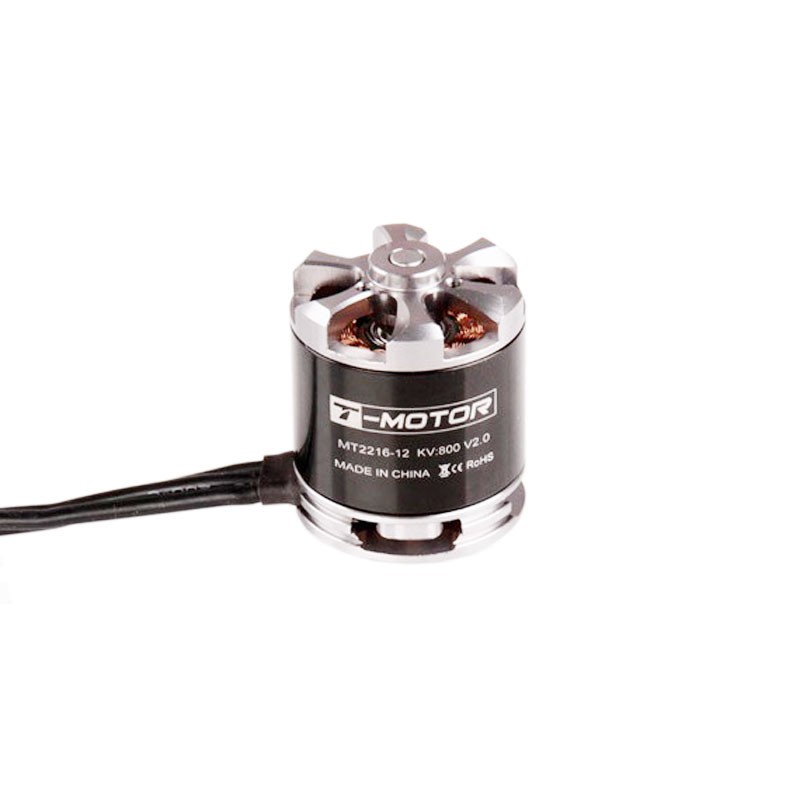

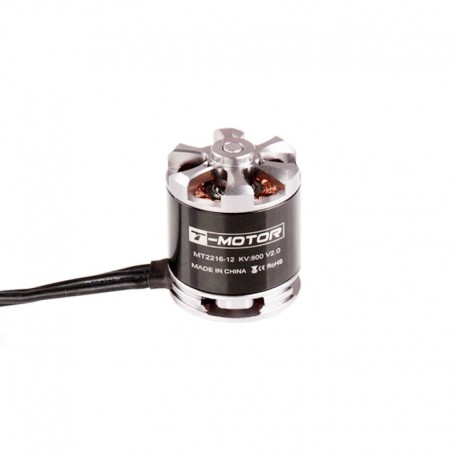

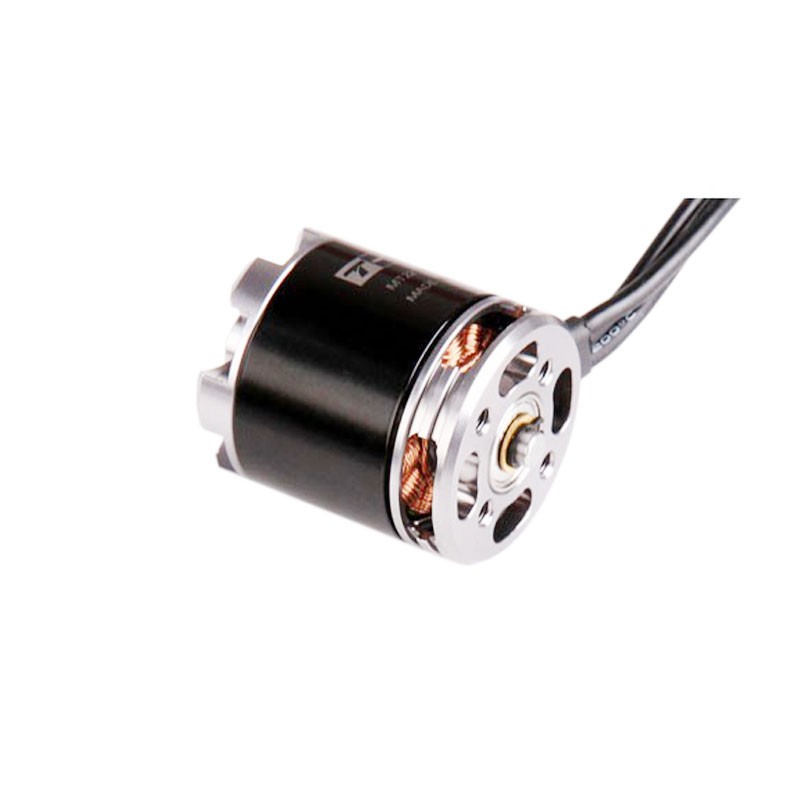

T-Motor MT2216-12 800KV V2 Brushless Motor View larger
Previous Next

Online only

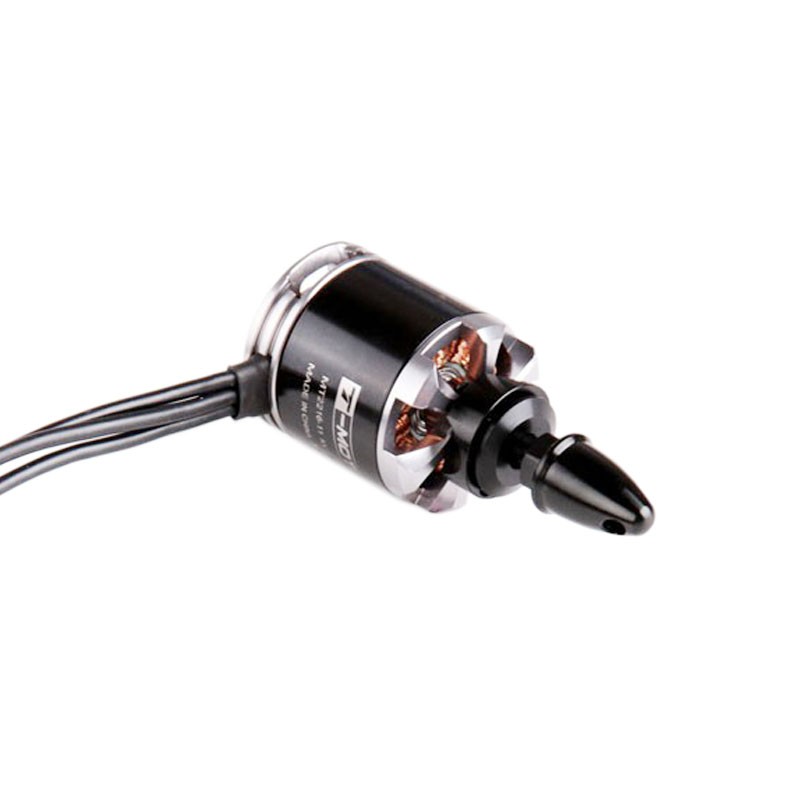

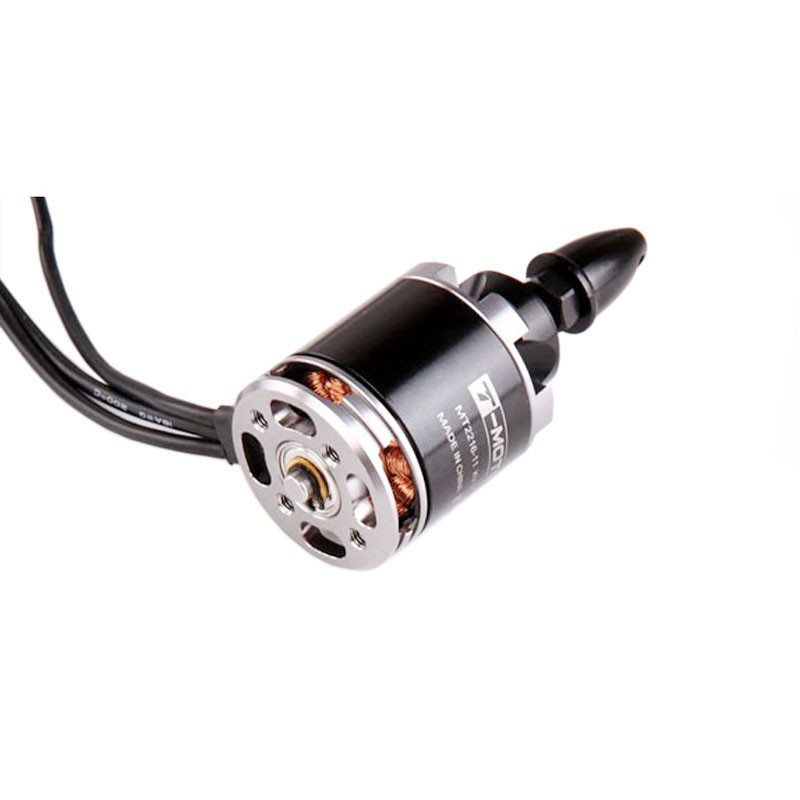

T-Motor MT2216-09 1100KV V2 Brushless Motor

New product

These are the latest V2 version with uprated shaft and even better quality bearings the choice of the Professional Multirotor pilot.

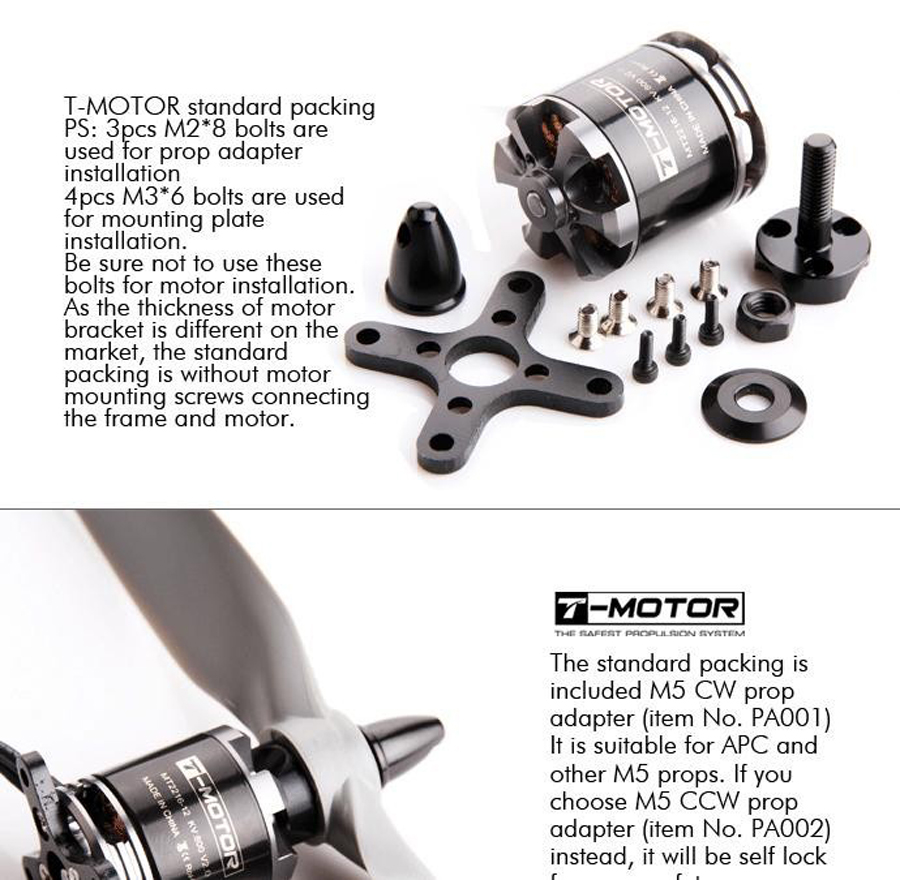

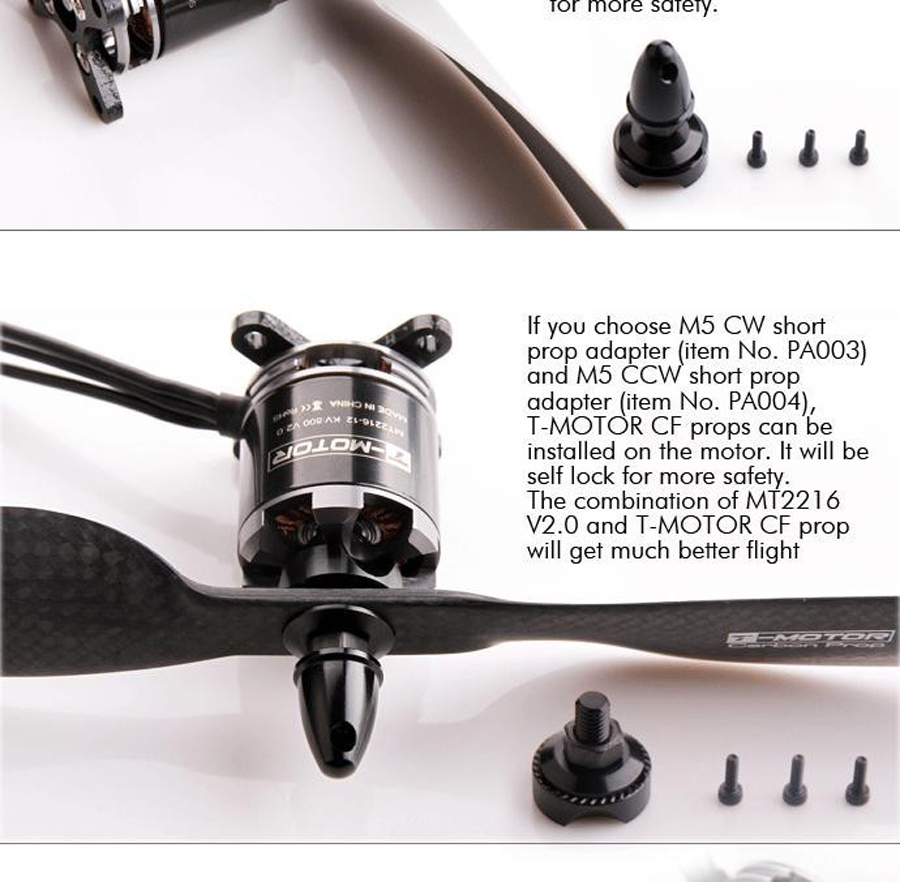

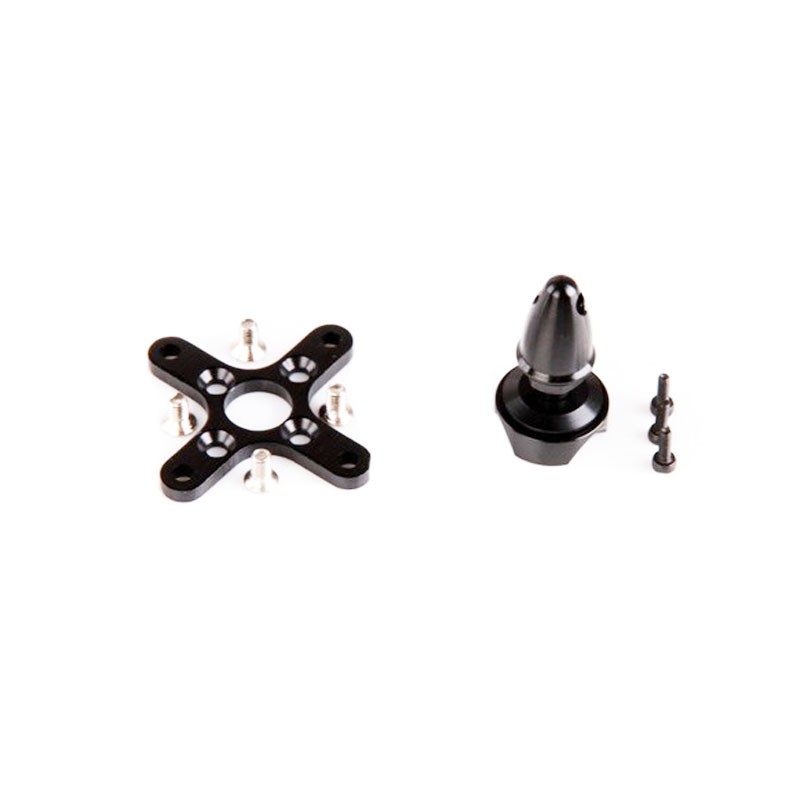

5.0mm Prop Adapter and Radial Mount included.
Come pre fitted with male bullet connectors.

More details

$60.00 tax excl.

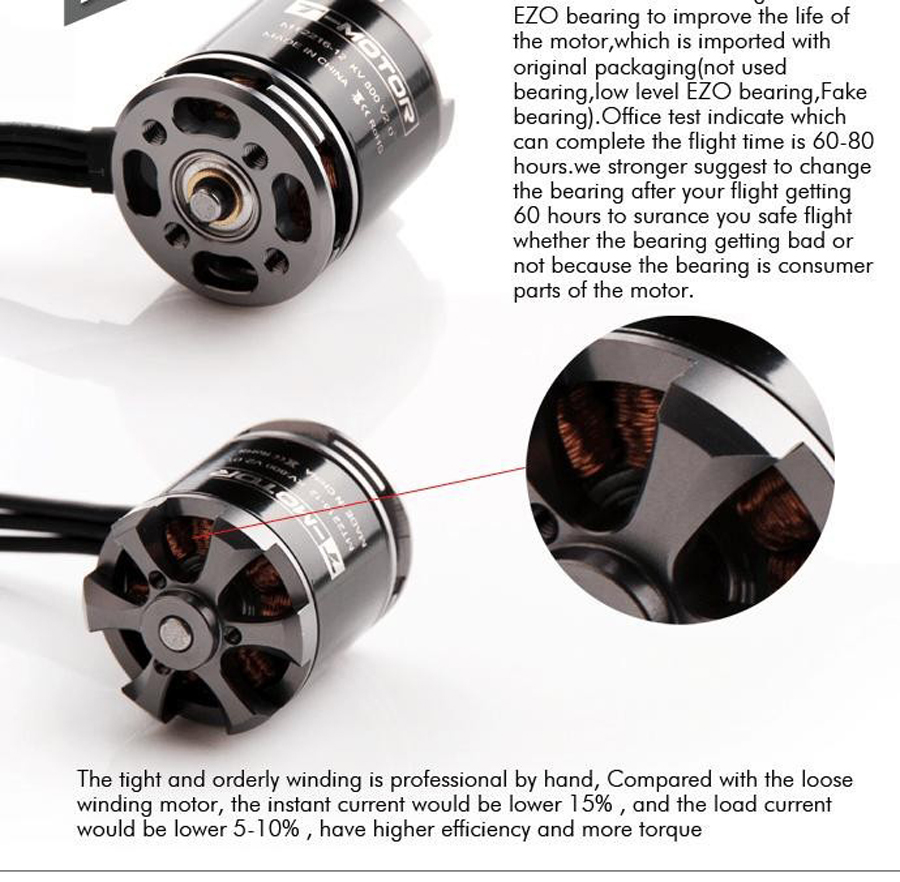

  • T-Motor MT2216-1.jpgT-Motor MT2216-2.jpgT-Motor MT2216-3.jpg

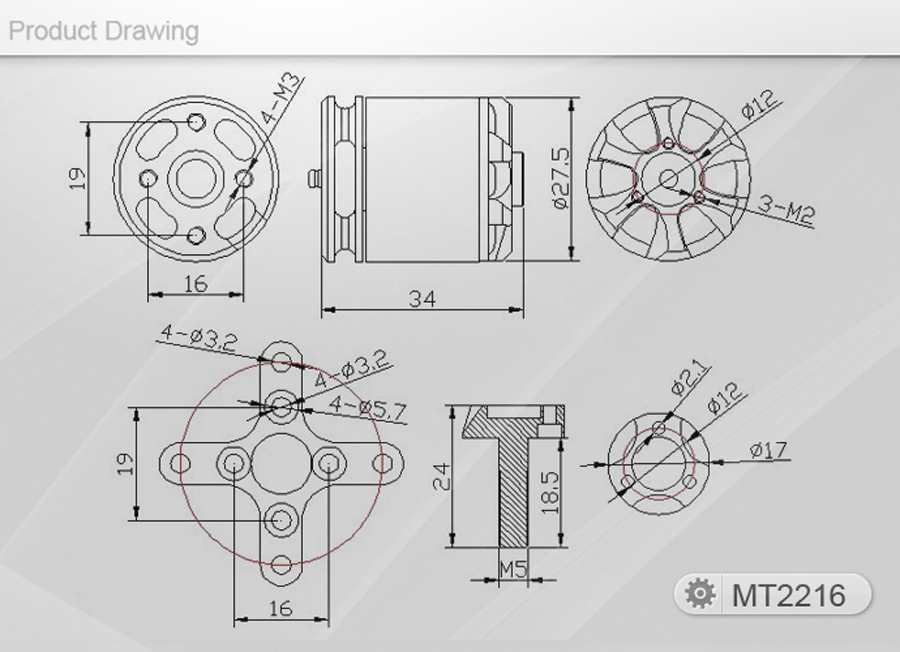

    Specifications:

    KV : 1100
    Configuration : 12N14P
    Stator Diameter : 22mm
    Stator Length : 16mm
    Shaft Diameter : 4.0mm
    Motor Dimensions(Dia.*Len) : Φ27.5×34mm
    Weight (g) : 75g
    ldle current(10)@10v(A : 0.3A
    No.of Cells(Lipo) : 3-4S
    Max Continuous current(A)180S : 25A
    Max Continuous Power(W)180S : 380W
    Max. Efficiency current : (4-15A)>74%
    Internal Resistance : 93mΩ


    T-Motor MT2216-1100.jpg
